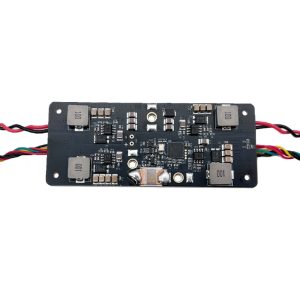

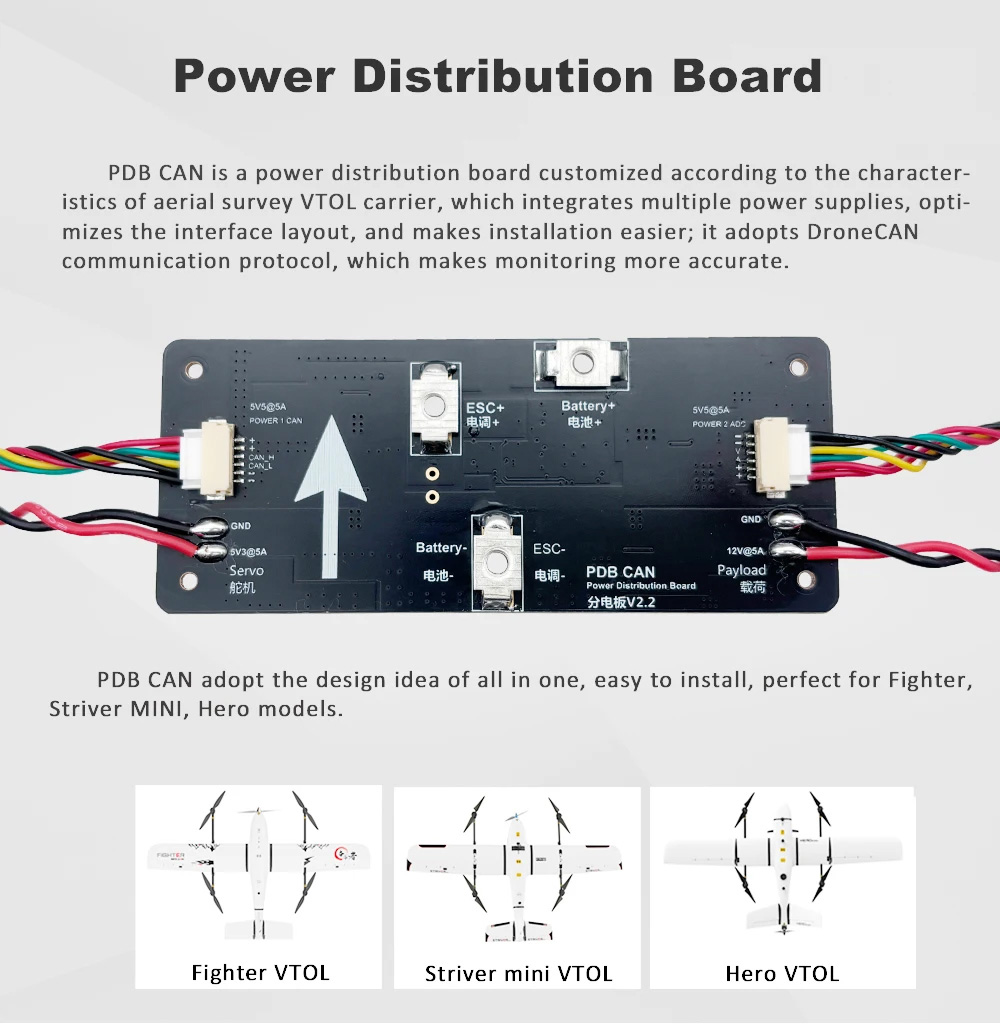

Makeflyeasy PDB CAN Divider Board

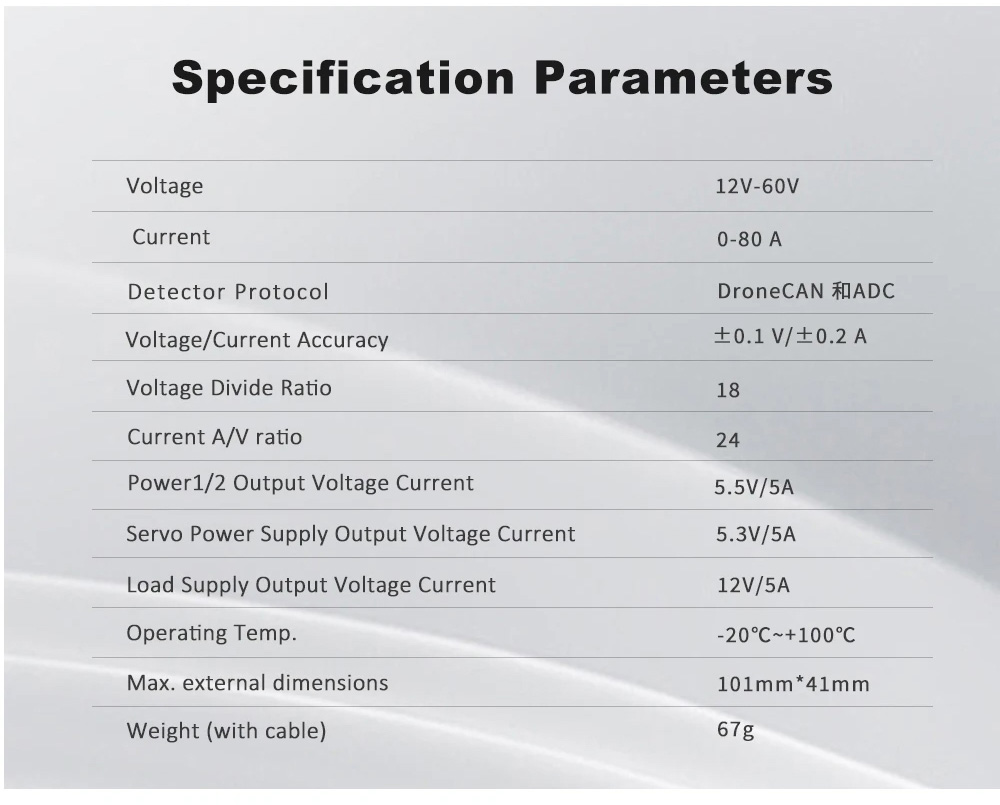

Specification:

• Model：PDB CAN
• Voltage：12V-60V
• Current：0-80 A
• Detector Protocol：DroneCAN and ADC
• Voltage/Current Accuracy：±0.1V/±0.2A
• Voltage Divide Ratio：18
• Current A/V ratio：24
• Power1/2 Output Voltage Current：5.5V/5A
• Servo Power Supply Output Voltage Current：5.3V/5A
• Load Supply Output Voltage Current：12V/5A
• Operating Temp.：-20°C~+100°C
• Max. external dimensions：101mm*41mm
• Weight(with cable)：67g
