About XING-E Pro 2207 2-6S FPV Motor
- XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.
- This 2207 sized motor features a High-strength 5mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features
- High-strength 5mm Steel shaft
- N52H High-temperature magnets, NSK bearings
- 16x16mm hole pattern
- Single strand copper winding
- Hex bolt shaft set screw
Specifications
- Model: XING-E Pro 2207 Motor
- KV: 1800KV / 2450KV / 2750KV
- Weight(included wire): 33.8g
- Dimension: φ28.5*33.1mm
- Interphase Resistance: 81.5mΩ / 46.8mΩ / 41mΩ
- Peak Current: 35.22A / 42.63A / 50.03A
- Max Watt: 845.3W / 682.1W / 800.5W
- Shaft Diameter: 5mm
- Shaft Protruding Length: 13.5mm
- Configuration: 12N14P
- Mounting Holes: 16*16 φ3mm

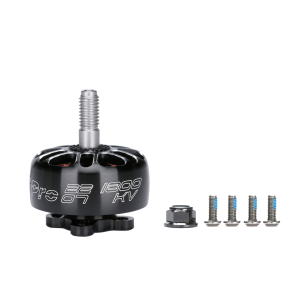

Package Includes
- 1x Motor
- 1x Nut
- 4x Screw
