About this product

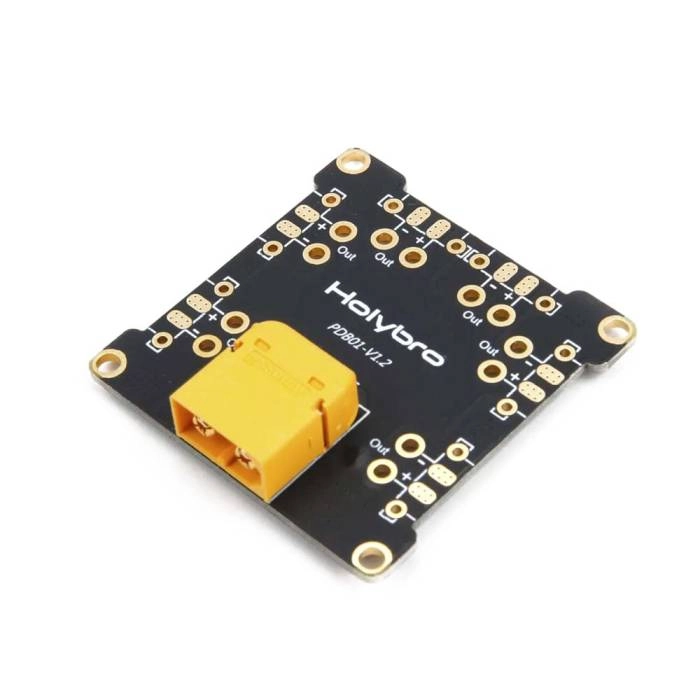

This Holybro Pixhawk Power Distribution Board (PDB) is used for PM02, PM02D, or similar power modules. This PDB is perfect for the Pixhawk 6X & 6C products.
Power modules with build-in power distribution such as the PM03, PM06, and PM07 would not require this PDB.
Note: Power modules with build-in power distribution such as the PM03, PM06, and PM07 would not require this PDB. This option does NOT include a XT30 pre-soldered cable. The option with XT30 pre-soldered goes perfectly with the ESC & Motor on the X500 V2.
Features
- Used for PM02, PM02D or similar Power Modules
Specifications
- Rated Current: 60A
- Max Current: 120A (<60 sec)
- 45x45mm Mounting Holes
- Dimensions: 50 x 50mm
Includes
- 1x Holybro Pixhawk PDB Board
