About this product

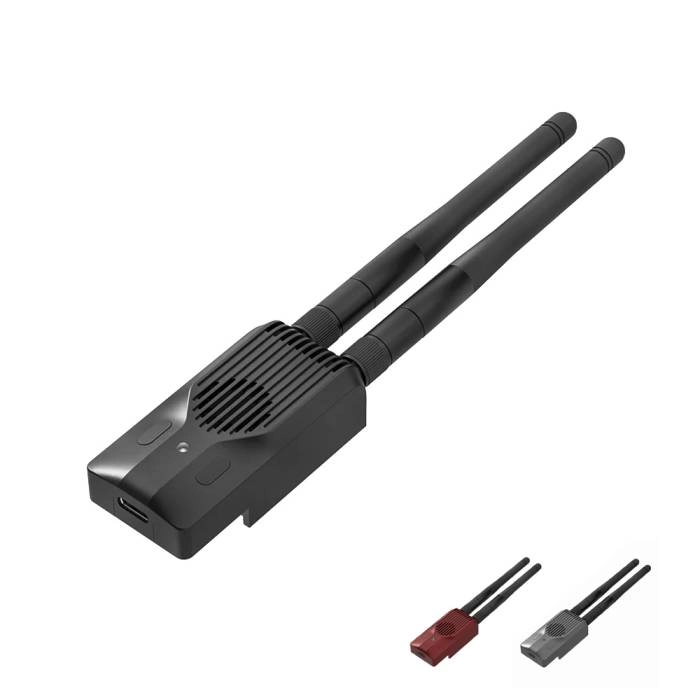

Introducing the groundbreaking BETAFPV SuperG Nano TX Module – ELRS 2.4GHz Gemini Dual-Frequency Diversity Transmitter, developed in collaboration with the ELRS developer team and built on ELRS V3.3 technology! This cutting-edge transmitter marks a new era in FPV with its unmatched performance. By leveraging the SuperG Nano Transmitter to its fullest potential, it achieves unparalleled link quality when paired with diverse receivers like the SuperD or SuperP. Boasting dual 1W transmit power, it stands out for its exceptional anti-interference capabilities and rock-solid stability. It is the ultimate choice for challenging applications such as FPV racing, long-range flights, and professional photography.
Note: Please assemble the antenna before powering on. Otherwise, the PA chip in the SuperG Nano Transmitter will be damaged permanently.
Features
- Cutting-Edge ELRS V3.3 Technology
- Dual-Frequency Diversity Capability
- Optional 3 colors – Black/Red/Gray
- Ideal for Demanding Applications
- Enhanced Transmit Power
- True Diversity Reception
- Optimized Link Quality
- Customizable Controls
- Robust Construction
Specifications
- Packet Rate: 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
- Target Name: BETAFPV SuperG Nano TX Module ELRS 2.4GHz
- RF Power: 25mW/50mW/100mW/250mW/500mW/1000mW
- Rated Current: 8V, 1000mA @ 1000mW, 1:128, Gemini mode
- Default Firmware Version: ExpressLRS V3.3.0
- External Power Supply: Supported 7-13V
- Color Options: Black, Gray, or Red
- Max RF Power: Dual-1000mW
- Antenna Connector: 2 RP-SMA
- Frequency Band: 2.4GHz ISM
- Cooling System: Supported
- Input Voltage: 7V~13V DC
- Antenna Mode: Gemini
- RF Chip: Dual SX128x
- Backpack: Support
- USB Port: Type-C
- Fan Voltage: 5V
- Weight: 44.8g
Includes
- 1x BETAFPV SuperG Nano TX Module – ELRS 2.4GHz (Choose Color)
- 1x Micro-Nano Module Adapter (Standard Version)
- 1x GH1.25 Male to FUTABA Male Signal Cable
- 1x Type-C Male to XT30U Male Power Cable
- 1x Double-Sided EVA Foam Tape
- 1x USB to Type-C Data Cable
- 2x 2.4G Glue Stick Antenna
- 1x Instruction Manual
- 1x Service Card
